Terminal - xTerminal

Information terminal with graphical touch screen display and intergrated ID card reader

You are here:

What is xTerminal?

Information terminal KFB xTerminal is universal device for information distribution and data collection. It was created thanks to many years of experience with time & attendance, access and information systems, as reaction to the ever expanding needs of our clients. It is an open system, that will not restrict the customer either by permanently programmed functionality, inefficiency, neither memory capacity.

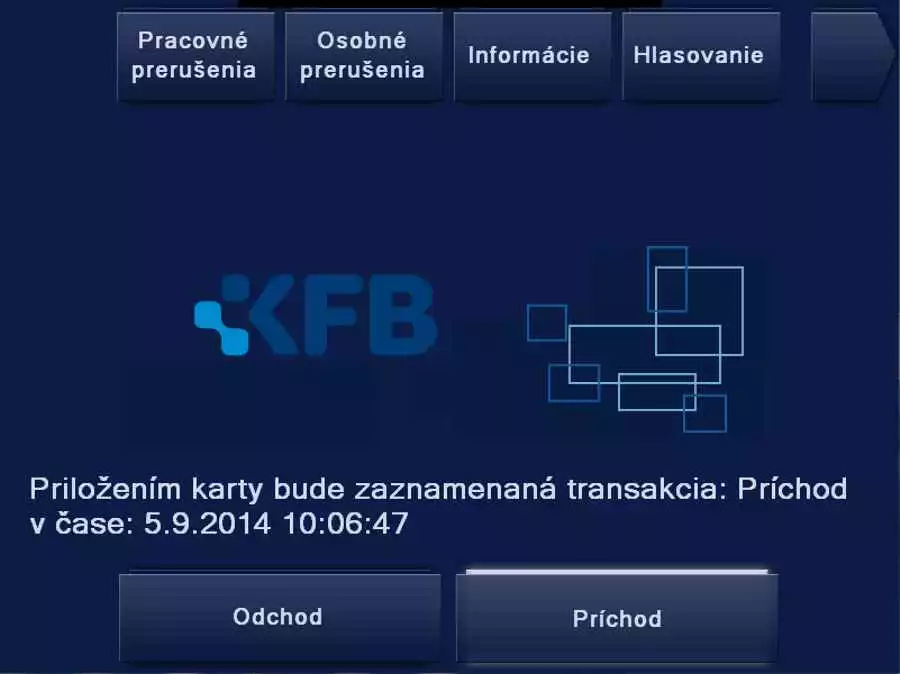

Collection of attendance data

  • attendance data records

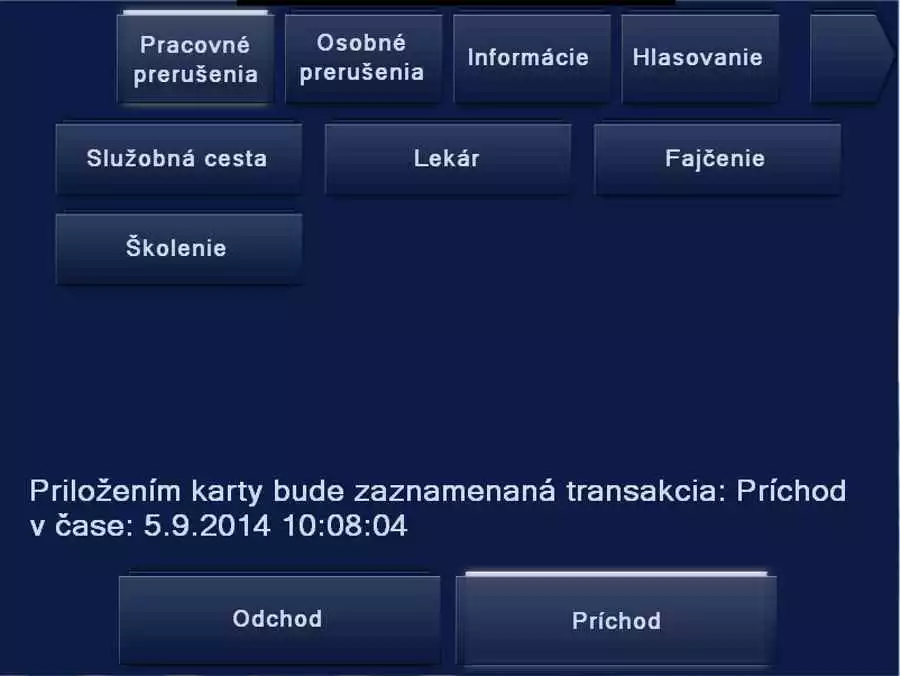

  • attendance reasons defined by customer
  • display of employees attendance data
  • display of defined information for specific employees
    (balance, vacation, etc.)
  • cooperation with attendance evaluation system without
    need of using another software or hardware
  • cooperation with SAP system
Terminál - xTerminal

Information terminal

  • display information to employees and clients
  • company announcements, newsletter, bus schedules, etc.

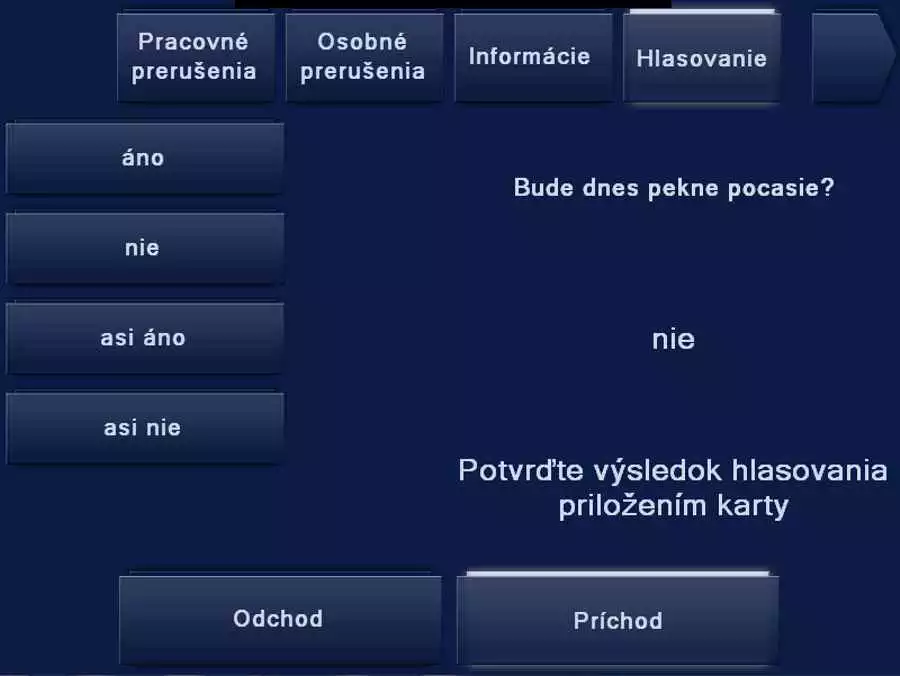

  • collection of information, poll box
  • services commissioning

Access control system, security system

  • control of security system
  • terminal can simultaneously be used to open doors for authorized cardholders

Catering system

  • food ordering by employees
  • handling of expenditure place

Control of technological processes

  • use of terminal as control panel of the technological process with operator identification by ID card
  • control panel for HVAC, operator workstations for industry

Functionality defined by customer

  • system is open and it is possible to add the required functions
  • possibility to install third party software for additional functionality


Unobtrusive modern desing, suitable for any space Case color according to customer requirements, choice from RAL sampler Reader surface made of hardened safety glass Possibility to build in to the level of wall Application design and GUI according to requirements of the client

Solution description:

Color touch screen 8“

Integrated reader of ID cards and tags

  • standard installation of HID, MIFARE, EM, iClass and Legic reader
    technology, others on request
  • possibility to install two readers to distinguish the direction
    of transaction
  • possibility to install readers of different technologies for mixed environments
  • Standard connection to LAN Ethernet, optional WiFi
  • Integrated camera for antivandal applications
  • Serial ports, USB ports for connection to third party devices (printer, barcode reader, etc.)
  • Sound output
  • Remote monitoring
  • All metal sturdy case, dimensions 270 x 255 x 48 mm (L x W x H)
  • Low power consumption, energy efficient, power consumption max. 25 W
